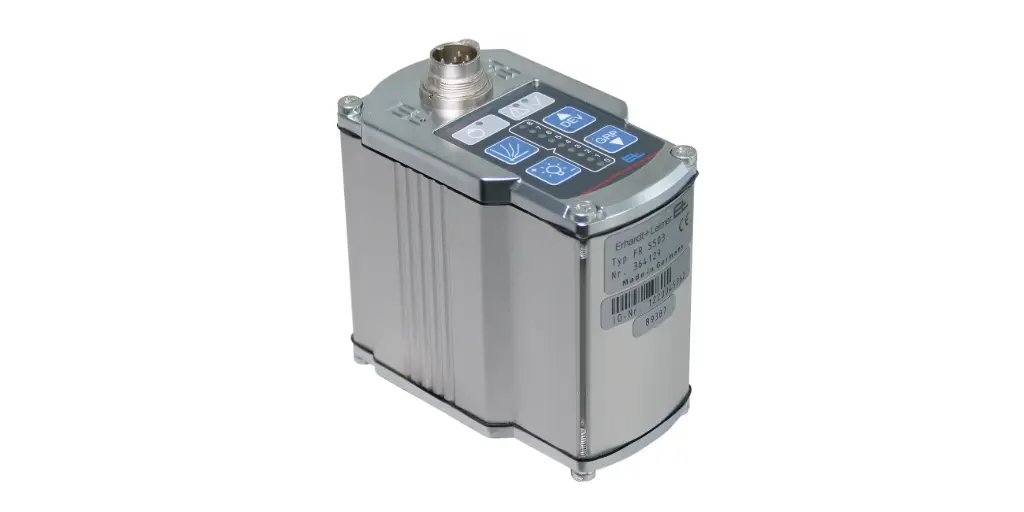

E+L Infrared Edge Sensor FR 5503
Technical Data:
Nominal supply voltage 24 V DC
Permitted supply voltage range 20 to 30 V DC (ripple included)
Current draw 100 mA
Power consumption 2.4 W
Scanning frequency 100 Hz
Measuring range +/- 10 mm
Distance edge sensor - web 36 mm
Protection class Max. IP 65 with suitable connector inserted
Ambient temperature +10 °C to +60 °C
Storage temperature -10 °C to +80°C
