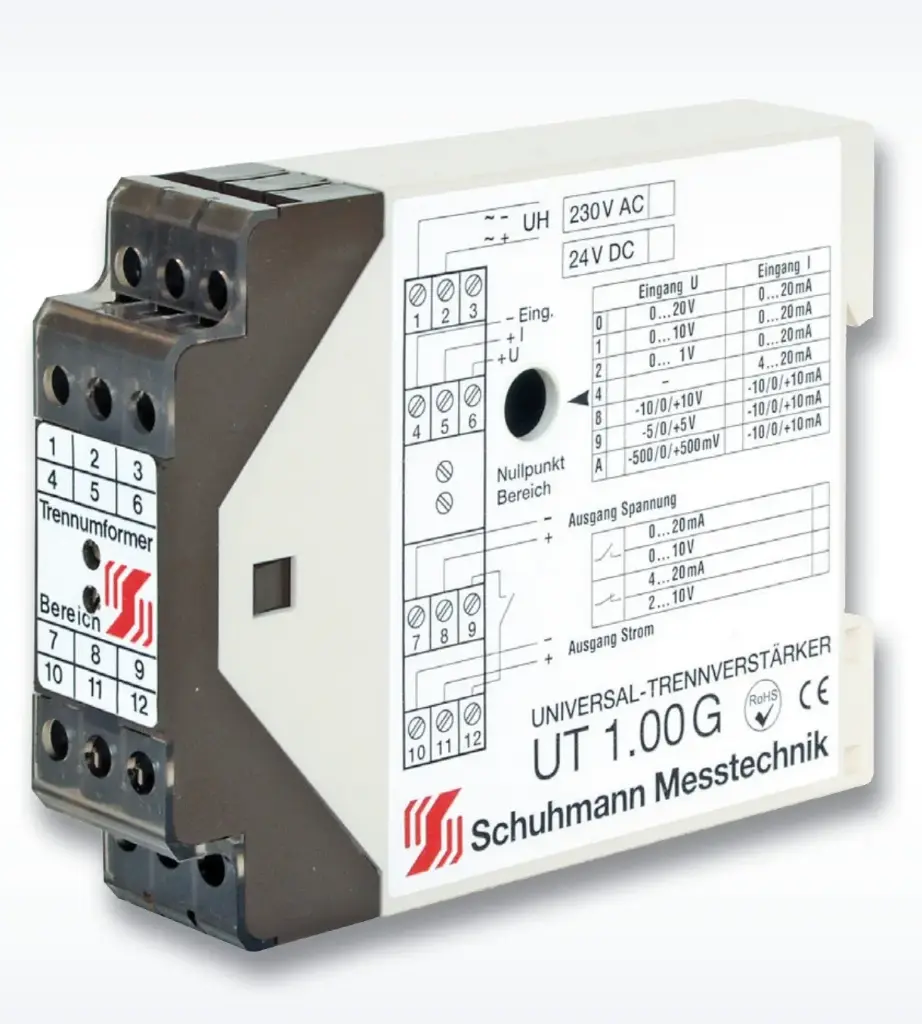

Universeller Trennverstärker UT 1.00 G

FEATURES

Input, switchable:

Current 0(4)...20 mA, ± 10 mA or

Voltage 0(2)...10 V, ± 10 V

Output, simultaneous:

Current 0(4)...20 mA and

Voltage 0(2)...10 V

Fine adjustment for zero point and

full scale adjustment using trimmers

3-way galvanic isolation

of 4 kV

Isolation amplifiers are used to isolate or convert analog signals. This ensures reliable decoupling of a sensor circuit from an evaluation circuit and completely prevents interference from other sensor circuits.

The UT 1.00 G has an input for current or voltage and an output that can output current and voltage simultaneously.  Fine adjustment of the zero point and full-scale value is performed using trimmers. Adjustment of the device is generally no longer necessary! The desired input values ​​can be found in the table on the side; selection is made using rotary switches. The output ranges are switchable. The integrated protection circuit with suppressor diode protects the secondary circuit from voltage spikes and transient overvoltages.
